Chord Electronics Ultima 6
futuristisk design!
56 000 kr
Chord Ultima 6
The ULTIMA 6 currently offers the most affordable way into our next-generation ULTIMA family of stereo power amplifiers. It builds upon its award-winning predecessor, the SPM 1050 MK II, adding our ground-breaking next-generation ULTIMA amplifier topology.
The new 180-watt model, which benefits from John Franks’ ground-breaking dual-feed-forward circuit delivers a lightning-fast response coupled with effortless power for astonishing dynamics and timing, delivering unrivalled fidelity.
30-years-in-the-making, our new dual-feed-forward topology offers breakthrough performance and is our first all-new circuit in three decades. ULTIMA amplifiers have been engineered for the very finest hi-fi systems; ULTIMA is the ultimate expression of the finest high-performance, ultra-fast, high-power amplifier technology available today.
The ULTIMA 6 has an incredible 32 proprietary MOSFET power devices which demand the most advanced and refined drive circuitry, featuring an ultra-low-distortion, high-voltage amplifier operating at very high speed: 300 volts per microsecond.
Our TO3-style dual-die lateral-matched MOSFETs are continuously monitored with output stage error-correction circuitry and feature fully balanced input circuitry with DC-tracking servos and full temperature compensation.
ULTIMA 6 shares the same DNA as the flagship and reference-level monos, yet benefits from greater practicality and affordability, due to a differing power output.

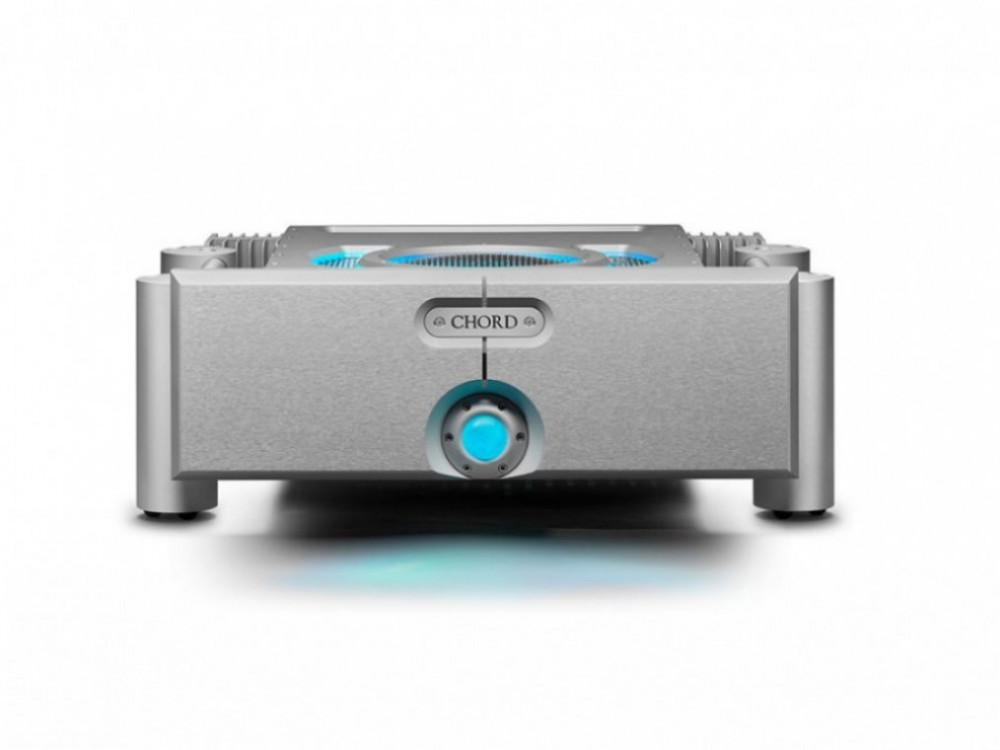

Our renowned aircraft-grade solid aluminium casework offers a reassuringly high-end and entirely non-resonant enclosure for the electronics and is presented with a redesigned 28-mm-thick fascia featuring John Franks’ latest aesthetic.
A recessed spherical polycarbonate power button illuminates for standby and operation modes and a discreet, hidden front panel switch, located in the vertical split line, enables dimmable lighting.
The amplifier’s rear panel contains both balanced and unbalanced connections, high-quality loudspeaker terminals, a 12 V trigger and a C-19-type IEC.
Inputs:
- 1x Stereo Pair of Gold Plated Balanced XLR Inputs
- 1x Stereo Pair of Gold Plated Unbalanced RCA Inputs
- 1x 12v Trigger Input – Chord Electronics Auto Start
Output:
1x Pair of High Quality, High Current, Gold Plated Type Speaker Terminals
Output Power:
180W RMS per channel @ 0.005% distortion into 8Ω
THD:
0.005% distortion
Frequency Response:
-1dB – 0.5Hz – 100kHz
Dimensions with included Integra Legs:
18cm (H) x 48cm (W) x 36cm (D)
Dimensions with optional Side Blocks:
15cm (H) x 42cm (W) x 36cm (D)
Weight:
22.4kG
Stereo | |
---|---|
Stereoslutsteg
|
Ja |
