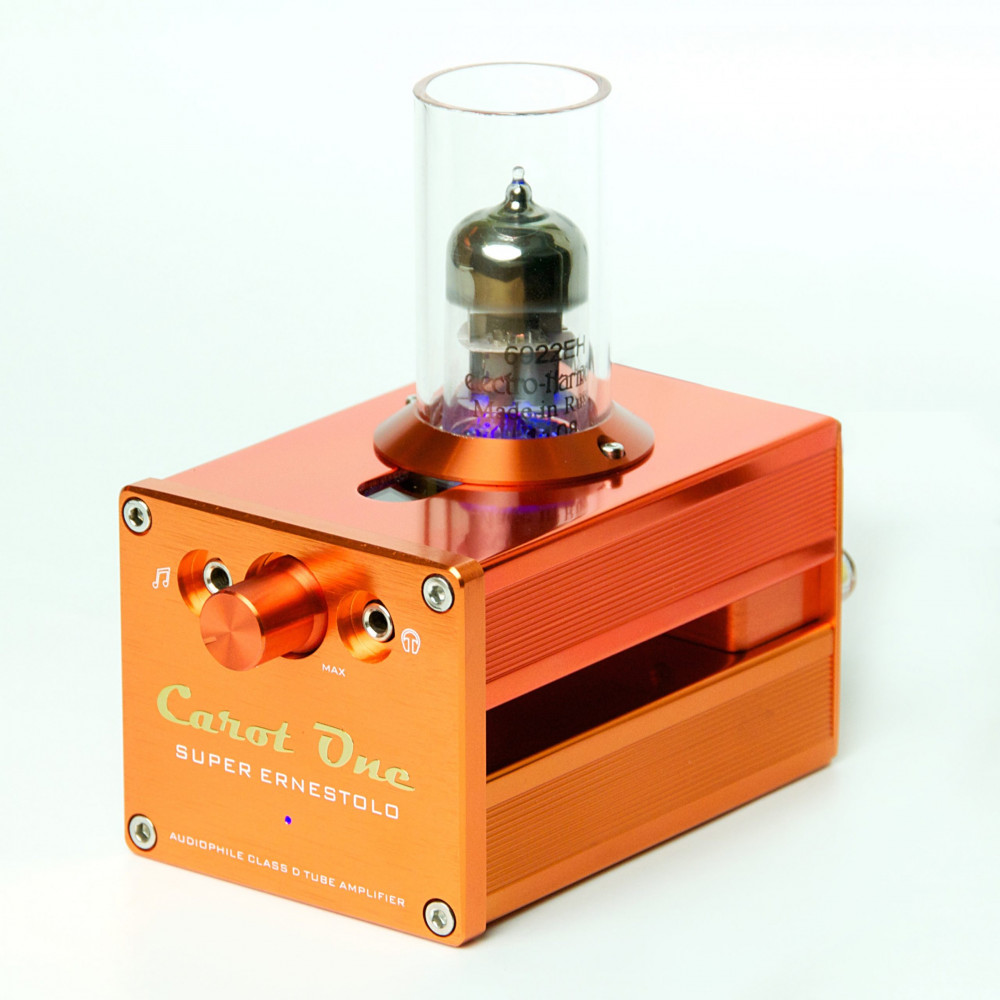

Carot One Super Enestolo

Front panel jacks for headphones and analog input, rear panel connection for line level input.

• As a result of numerous awards and great successes here is the SUPER ERNESTOLO.
• Same size but with twice the power of ERNESTOLO. In addition, the connectors for the speakers are gold plated.
• Tube amp: tube preamp – power amp with 25 watts per channel.
• Fashion design (orange iridescent) and the sizes for the product is 65mm x 60mm x 98mm.

Specifikationer:

• 12 watts+ 12 watts 8 Ohm RMS
• 18 watts+ 18 watts 6 Ohm RMS
• 25 watts+ 25 watts 4 Ohm RMS
• Output Power: 2x12W 8ohm(RMS), 2x25W 4ohm
• Signal-to-Noise Ratio (SNR): 98dB
• Dynamic Range: 98dB
• THD+Noise Audiophile Quality: 0.03% 9W 4Ohm, 0.15% 8W 4Ohm, 0.11% 6W 8Ohm
• High Power: 10% 15W 4Ohm, 10% 10W 4Ohm
• Input Audio: IN RCA (Left/Right) x 1
• Power Socket: 2.1mm x 1
• Speaker OUT: Banana socket x4
• Power Indicator: (Blue LED) x1
• Power Supply: DC 12V-13.2V (max.)
• Signal-to-Noise Ratio (SNR) Amplifier: 92dB
• Power Output Amplifier: 600m Watts per channel on 32 Ohm
• Frequency response: 15 Hz – 100 kHz -1db
• Input Impedence: 10k Ohms
• Input Impedance Amplifier: 10k Ohms
• Vacuum Tube: 6DJ8/6922 series or 12AU7 series (exchangeable)
• THD + Noise: 0.05% 10k ohm 0.15% 33 ohm
• Output Audio OUT: 3.5mm x 1
• Headphone OUT: (3.5mm) x 1
• Power Indicator Amplifier Unit: (Blue LED under Tube Socket) x1
• Volume Knob: x1
• Power Supply Amplifier Unit: DC 12V-13V (max.)
• Dimensions: (W) 76mm x (H) 60mm x (D) 100mm
• AC Input Universal: AC 100V-240V/50-60Hz
• DC Output: DC 12V 5A (60W)
• DC Plug: DC 2.1mm
• Ripple & Noise: <= 25mV
• Over-load Protection: 105%-150%
• Over-voltage Protection: 115%-150%
• Dimensions AC Adaptor: (L) 78mm x (W) 50mm x (H) 33mm
