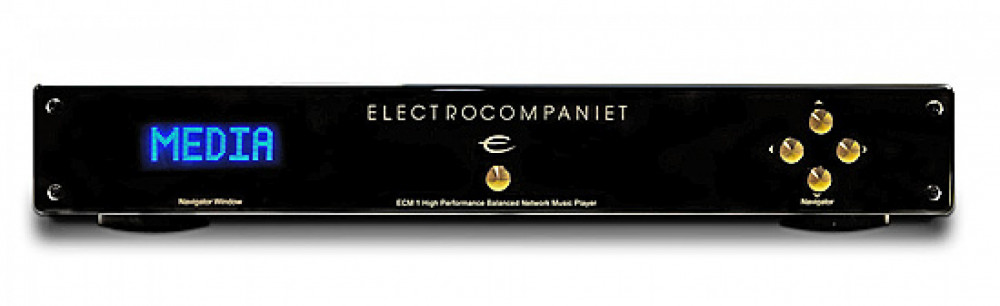

High Performance Balanced Network Music Player
The new ECM 1 is a music streamer and player, complete with the DAC-section from our acclaimed ECD 2. It plays lossless, DSD and high-resolution digital content in a way that really makes you want to dig deeper into all the delightful music out there, as well as your own library. It lets you enjoy music like never before.The streamer is very powerful, flexible and easy to use. It plays directly from Tidal, Spotify and Qobuz and can be fed through AirPlay or DLNA.
And of course it can even index and play from your own network-stored music collection. The powerful hardware supports all popular formats including DSD, and continuous software upgrades let you enjoy the latest streaming devices at any given time. It also supports plug and play installation of an 2,5 or 3,5” SATA hard drive of unlimited capacity to host you music collection.
Technical DataAll measurements are made at 120V / 240V //50Hz / 60
- No. of channels: 2
- Output Impedance: 300 Ohms
- Noise floor (20 - 20 kHz): < -145 dB
- Frequency response: 0.5 - 48 kHz
- THD+N: < 0,0005 %
- Upsampling rate: 192 kHz, 24 bit
- Digital/Analog conversion: 192 kHz, 24 bit
Input sampling rate:
- 2 x SPDIF Coax - 192 kHz, 24 bit
- 2 x SPDIF TOSLink - 192 kHz, 24 bit
- Network connection: Wi-Fi or LAN
- Internal drive: Docking, self installation. 3.5"/2.5" - unlimited capacity.
- Supported audio formats: All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, AIFF, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz)
- Supported control interfaces: DLNA, UPnP, Android and iOS remoteInternal storage: docking, self installation
- Streaming services: • AirPlay • Spotify Connect • TIDAL • DLNA as renderer • Qobuz • Internet Radio
- Power consumption(no load or signal): 50 W, standby: 0.5 W
- Width: 465 mm / 18.3 inches
- Depth: 371 mm / 14.6 inches
- Height: 78 mm / 3 inches
- Weight: 8 kg. / 17 .6 lbs. *(without internal drive)
