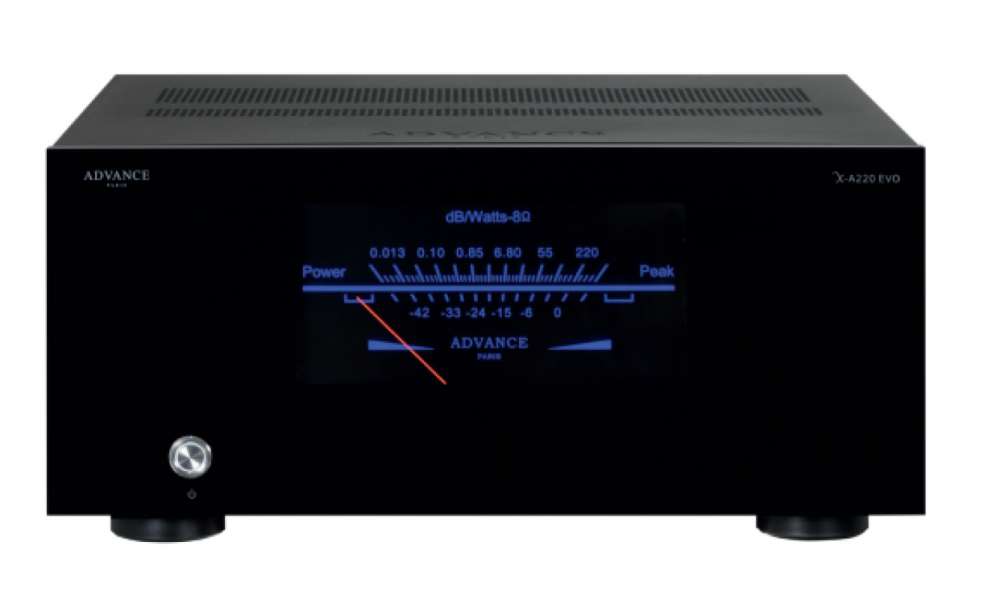

Advance Paris X-A220EVO Monoblock

POWER & FINESSE

The new X-A220EVO monophonic power amplifier delivers a power of 220W. It is ideally
combined with the X-P500 preamplifier to form a highly musical hi-fi system. Advance Paris technical
mastery combined with the most audiophile possible design of their circuits allow them to achieve high level performance at a competitive price.

Construction: The steel frames have an impeccable finish. The addition of methacrylate facades enhances their successful aesthetics, while by providing a significant ergonomic dimension, thanks to an imposing view-meter. The internal layout is rational and
compartmentalized. This judicious arrangement of the different sub-assemblies is accompanied a choice of quality components, welded on separate PCBs and partitioned by function. The X-A220EVO owes its thickness to the height power transistor heat sink
with generous dimensions.

The X-A220EVO has a 700 VA toroidal transformer. After rectification, four capacitors of 10,000 µF / 80 V smooth the direct current. An NE5532 operational amplifier is shown on theinput board with balanced and unbalanced switch. The power stages call for to a triple push-pull of complementary transistors, delivering up to 220 W / 8 ohms in class AB. The amplifier can operate in two modes accessible via a switch: when the function "High Bias" is engaged, the X-A220EVO operates in class A on the first watts then automatically slides into class AB

SPECIFICATIONS

• Power output: 8 Ω : 1 X 220 W RMS
• Power output: 4 Ω : 1 X 350 W RMS
• Frequency response: 10 Hz - 80 kHz
• Distortion: < 0,08%
• Signal/Noise ratio: > 100 dB
• Channel separation: > 80 dB
• Input impedance: 32KΩ (Unbalanced)
• Input impedance: 38KΩ (Balanced)
• AC Input: 115V/230V (Auto switching)
• Standby power consumption: < 0,5W
• Power consommation max: 500W
• Power transformer: 700W
• Toroïdal transformer
• Dimensions: H.20 cm x W.43 cm x D.45 cm
• Net Weight: 21 kg
